Tapout Cone/Tap Plugs
Product No: (JT-TOC)

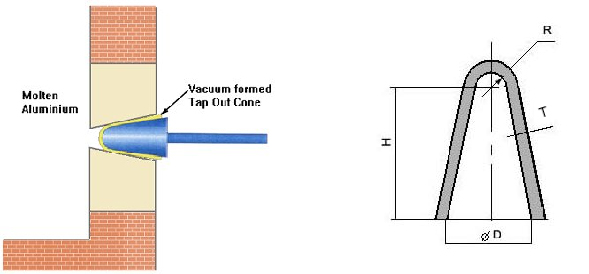

To
pour the molten aluminium from melting or holding furnaces for aluminium
casting, some units use tap hole block, which is sealed with Tap Out
Cone.
JINTAI vacuum formed cones are made from ceramic fiber,
with smooth surface and the right hardness forthe application.
Availability
-
Custom densities/hardness available upon request
-
Custom sizes available upon request. To order: D-H-R-T
Technical Data
|
PROPERTIES |
|
|
Typical
Composition, wt %
Al2O3
SiO2
|
45
53 |
|
Maximum Service
Temperature |
1260°C |
|
Continuous
Service Temperature |
1100°C |
|
Loss on Ignition,
% |
5-8 |
|
Density, (kg/m3) |
200-250 |
|
Linear Shrinkage
% at 1100°C |
2.6 |
|
Thermal
Conductivity [W/mK]
600°C
800°C
1000°C |
0.15
0.18
0.28 |
