   Tower Packing>>Metal Random Packing>>Metal Conjugate Ring                        Sales: Biz@jintai-group.cn

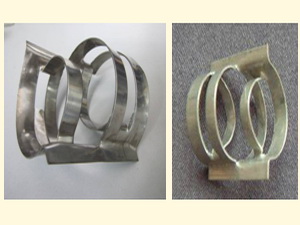

Metal Conjugate Ring

Product No: (JT-MCR)

JINTAI--Metal Conjugate Ring

        JINTAI Metal Conjugate Ring packing is a blend of the saddle-shaped packing and ring-shaped packing. The advantages of the conjugate curve fin structure, both ends of the outer edge and the right aspect ratio. Metal conjugate ring will not overlap each other and possess uniform porosity.

Advantages of metal conjugate ring:

l  Low pressure drop

l  high  flux , excellent quality and high efficiency.

l  Better hydrodynamics mass transfer performance.

Application: Distillation, gas absorb, de-absorb system.

Material: Carbon steel, stainless steel, aluminum, zirconium, titanium and other special alloys.

Specification of JINTAI Metal Conjugate Ring:

Specification
D*H*δ

Specific surface area
m2/m3

Void
ε
m3/m3

Num
n
m-3

Heaping Weight
γρ
kg/m3

5/8 "

16*0.4mm

313

0.97

211250

354

1 "

25*0.6mm

185

0.95

75000

216

1.5"

38*0.8mm

116

0.96

19500

131

2"

50*0.8mm

86

0.96

9772

97

3 "

76*0.8mm

81

0.95

3980

94.5
